Marker solar road, in aluminum or polycarbonate.



1/4/6/8 led, light flash or stable.

Colors: white, red, blue, yellow, green.

Capacity 20 ton.





















SOLAR ROAD MARKER 6 LED

SOLAR ROAD MARKER 6 LED - ElioSolar by Modular System

ART. SRS00

Solar road stud
Size: 108*109*23mm
Weight: 0.33kg
Material: aluminum
Visual distance: 1000m
Lifespan: 3~5 years
Solar panel material mono-crystalline
silicon size 57*38*3mm
Power: 2V /0.3W
Battery Type
Anti-high(low) temperature NI-MH Battery
Power: 600mAH
Voltage: 1.2V
Led Luminance 5000lm-8000lm
Color led/White/Green/Blue/Yellow
Power: 2V
Diameter led 5mm Epistar brand
Quantity 6 led
Flash rate 90times/min
Luminosity mode: Flashing or steady
Temperature: -25°C~+75°C
Protection level: IP68
Warranty: One year

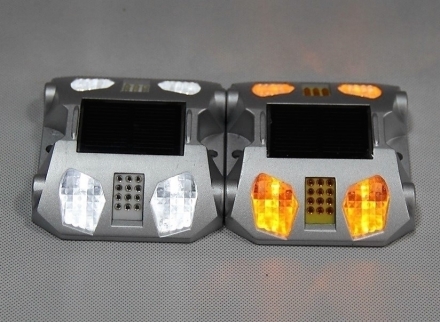

SOLAR ROAD MARKER 4 LED

SOLAR ROAD MARKER 4 LED - ElioSolar by Modular System

 ART. TPRSR4

Dimensions: 90*110*22mm
Unit weight: 0.28kg
Material: Cast Aluminium and PC cover
Solar panel: Monocrystalline silicon 2V/100mA ( 0.2W)
Storge device: Anti-high temperature NI-MH 1.2V/600MAH
LED: Epistar φ5 super brightness LED,
yellow/white /red/blue/green colors
180 hours for flashing, 40 hours costant after fully charge
Working mode: Flashing or constant
Working temperture -25 °C~+ 75°C
Protection level IP68
Visibility 1000m  Over 20tons

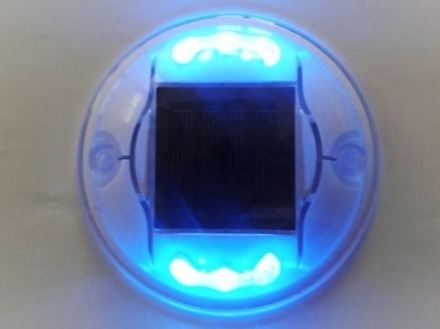

SOLAR ROAD MARKER 6 LED POLYCARBONATE

SOLAR ROAD MARKER 6 LED POLYCARBONATE - ElioSolar by Modular System

ART. TPSR6

*Unit size: Dia 123*23MM
*Unit weight: 0.26KG
*Material: polycarbonate
*Solar panel: 2V/0.3W mono-crystalline silicon
*Battery: 1.2V/600mAh NI-MH battery
*LED: Epistar brand, Dia 5mm, 3pcs/side
*LED color: white,yellow,red,blue,green
*Working temperature: -25 °C ~ + 75 °C
*Working mode: flashing (blinker) or steady (constant)
*Working time: 180 hrs for flashing, 40 hrs for steady
*Lighting control < 80 LUX, can be adjusted as ur request
*Visibility: 1000M
*Protection level: IP68
*Load bearing: over 20tons

SOLAR ROAD MARKER 6 LED 180° DEGREES

SOLAR ROAD MARKER 6 LED 180° DEGREES - ElioSolar by Modular System

ART. SRS0

Solar Panel
0.3W mono-crystalline
Ni-mh Battery 1.2V/600mAH NI-MH
LED Qty 6 φ5 super bright
LED Frequency
Flashed for 90times per minute or Stable
LED Color Red, yellow, white, blue, green
Luminous intensity
5000mcd-8000mcd
Lighting Time 80h after fully charged
Material Aluminum
Visual Distance >500meters
on Light Intensity 450-500Lux
Product Size 120*40*23mm
Protect LevelIP68
Work Temperature -30 centigrade +70
Weight Resistance in static >20 Tons
Weight 200g
Warranty One year
